SA090AR0 Stainless Steel Open Thin Section Bearing Type A-Angular Contact
Dentification of thin section bearing SA090AR0
S：Material AISI 440C Steel_no seals or shields
A：Series standard cross section_open bearings
90：Inch Size ( bearing bore 9.000 inch )
A: Bearing Type_angular contact single row bearing
R: Separator_standard one piece formed ring with circular pockets
0: Precision_kaydon precision class 1 per ABEC 1F

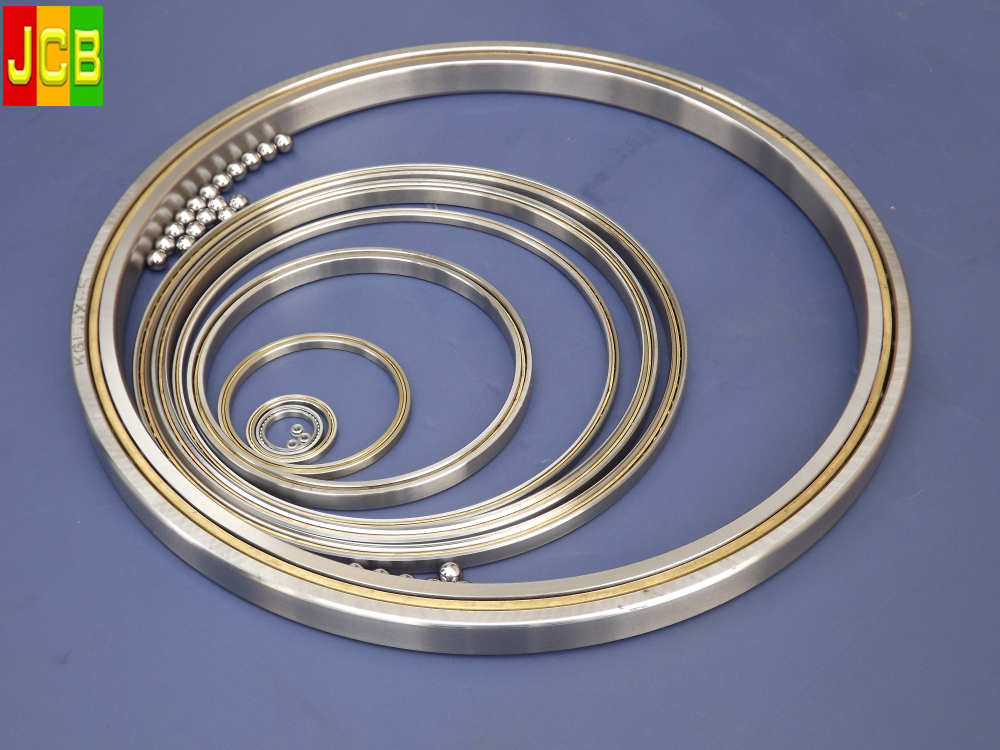

KAYDON THIN SECTION BEARING SA090AR0
SA090AR0
Dentification of thin section bearing SA090AR0
S：Material AISI 440C Steel_no seals or shields
A：Series standard cross section_open bearings
90：Inch Size ( bearing bore 9.000 inch )
A: Bearing Type_angular contact single row bearing
R: Separator_standard one piece formed ring with circular pockets
0: Precision_kaydon precision class 1 per ABEC 1F

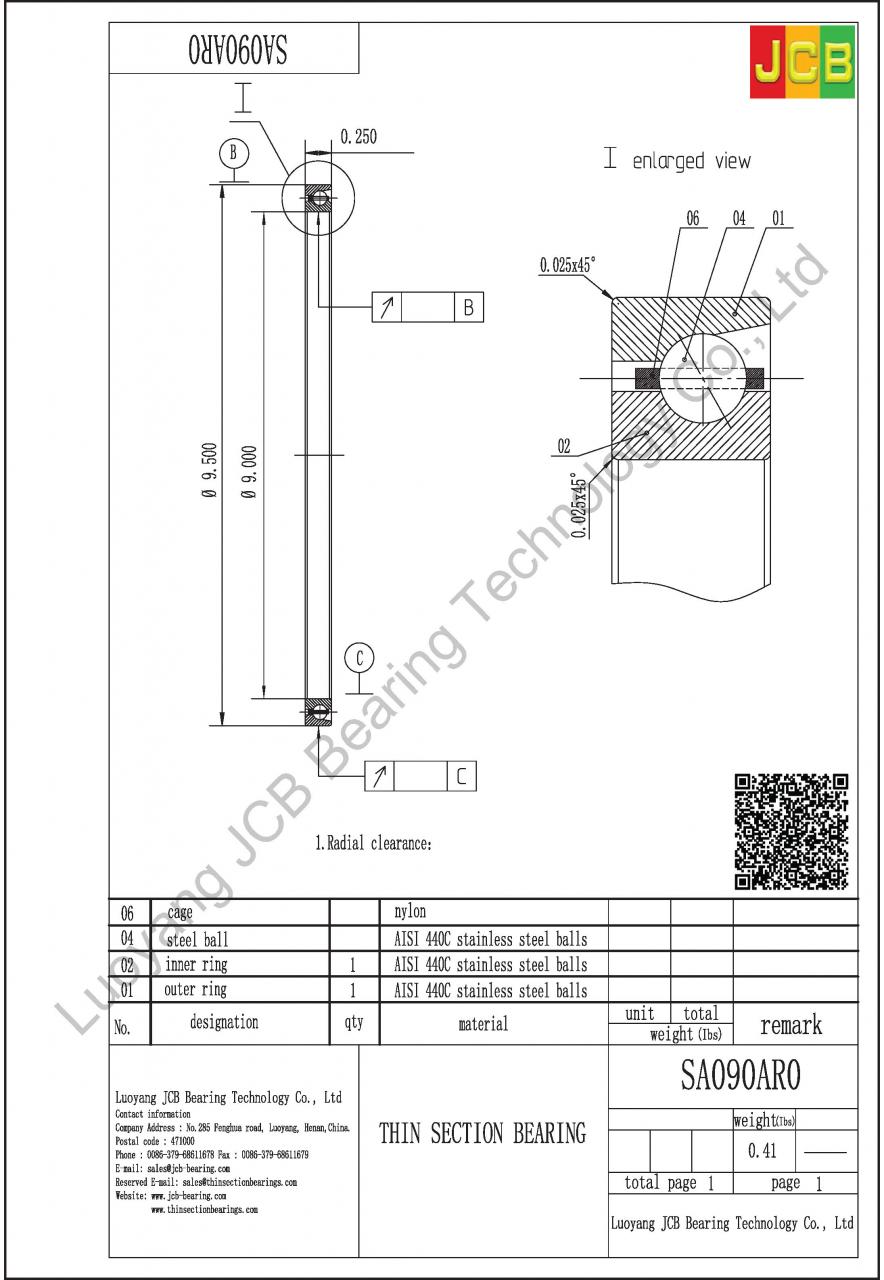

Please download rough drawing of thin section bearing for reference，formal drawing will be submitted after contact with [email protected] or [email protected]
| KAYDON | FIJ |
| SA090AR0 | SA090AR0*FIJ |
Specifications of kaydon thin section bearing SA090AR0
| For Shaft Diameter | 9.000″ |
| Inner Diameter (d) | 9.000″ |
| Inner Diameter Tolerance | -0.0012″– 0″ |
| For Housing ID | 9.500″ |
| Outer Diameter (D) | 9.500″ |
| Outer Diameter Tolerance | -0.0012″– 0″ |
| Width (B) | 0.2500″ |
| Width Tolerance | +.000 –.005″ |
| Bearing type | Angular contact ball |
| Contact Angle | 30° |
| Seal Type | Open |
| Cross Section | 1/4″ x 1/4″ |
| Internal clearance | – |
| Operating temperature range | – |
| Radial dynamic load capacity | request by email |
| Radial static load capacity | – |
| Axial dynamic load capacity | request by email |
| Axial static load capacity | – |
| Bearing material | AISI 440C |
| Ring material | AISI 440C |
| Separator material | – |
| Separator type | – |
| Maximum rpm | – |
| Weight(lbs) | 0.410 |
