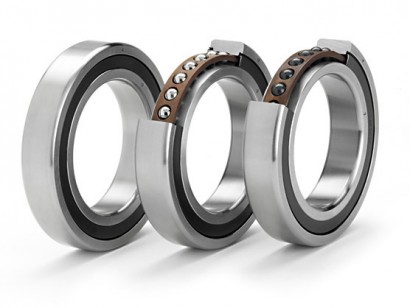

Angular Contact Ball Bearings

Versions of angular ball bearings

Single row: Main dimensions according to DIN 628-1. Usable in case of high loads in the radial or axial and single direction. Suitable for high speeds.
Double row: Main dimensions according to DIN 628-3. Usable in case of high loads in the radial or the axial and double direction. Corresponds to the O-arrangement of two single row angular ball bearings, but it is nevertheless narrower. Suitable for high speeds.

Angular contact ball bearings — Combination for radial and axial forces.

Angular ball bearings are self-retaining bearings which are available in single or double rows and are designed for the accommodation of combined loads in radial and axial directions. Typically, the inner and outer raceways and balls are made of chrome steel. Where operating conditions are severe, bearings may have ceramic balls creating a hybrid bearing.

Material description of angular ball bearings

Angular ball bearings made of rolling bearing steel: are economical, withstand extremely high load-ratings and are suitable by their rubber seals and metal cage for the use with temperatures from circa -10°C up to +100°C in the long run, in case of polyamide cages up to circa +70°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.
Angular ball bearings made of stainless steel: are hygienic, corrosion-resistant, lubricated with grease for the food industry, magnetic and are admissible for a temperature range from circa -20°C up to +120°C. With rubber seals and metal cage temperature-resistant up to circa 100°C in the long run, in case of the use of polyamide cages usable up to circa +70°C.
