Tapered Roller Bearings

FIJ BEARINGS > Products > Roller Bearings > Tapered Roller Bearings

VIEW CATALOG

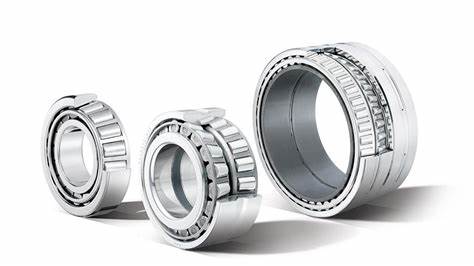

Versions of  Tapered Roller Bearings

Inch & Metric Single Row
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup.
Inch & Metric Double row
​Double- or two-row tapered roller bearings feature double cups and two single cones. They are available in a variety of configurations for general industrial and automotive applications.
Four Row
Four-row tapered roller bearings combine the inherent high-load radial/thrust capacity and direct/indirect mounting variables of tapered roller bearings into assemblies offering maximum load rating in minimum space.
Tapered roller bearings — combination for high radial and axial forces.

Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer). The cone, cup and rollers carry the load while the cage spaces and retains the rollers on the cone. The cone, rollers and cage components of our tapered roller bearings are referred to as the cone assembly. Individual cup and cone components of our tapered roller bearings are available as well as the complete assembly. In addition, FIJ offers a variety of configurations to our tapered roller bearings such as single-row, double-row and four-row.

Material description of tapered roller bearings

Tapered roller bearings made of rolling bearing steel
are economical, withstand extremely high load-ratings and are suitable for temperatures from circa -20°C up to +120°C, in case of plastic seals up to +100°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.

RESOURCE CENTER

Applications

Read More
dental-instruments

Medical Instruments

From ultra-precise surgical instruments to high speed dental drill turbines, FIJ miniature bearings deliver the highest
Read More
electric-motors-pic-01

High Precision Motors

High precision motors are used throughout industry to provide smooth and quiet rotation. From robotic exoskeletons to in
Read More
water-pump-station

Vacuum Pumps

Operating in a high or ultra-vacuum environment presents a number of challenges for bearings, which are essential in ach
Read More
machine-tool-spindles-grinding-id-400-l-1

Machine Tool Spindles

In industry, it’s essential that machine accuracy is achieved and maintained to the highest degree. High speeds and load
Read More
Robotics_PICLARGE-1200x800

Robotics Industry

The field of robotics is becoming an increasingly sophisticated and rapidly developing area of innovation. From artifici
Read More
food-and-bev-crop

Food & Beverage Industry

Specifying a ball bearing for use in food and beverage production and packaging raises a unique set of considerations

Read More
IMG_20151218_151012

Flow Meters

It is essential that the flow of gases and liquids is accurately measured by turbine flow meters, where conditions ar

Read More
manufacturing-automation

Automation & Industry

Since the introduction of the Ford production line over 100 years ago, the manufacturing industry has embraced the co

Read More
industries-agriculture

Agriculture Industry

Uptime is critical as unplanned downtime that can ruin a planting or harvesting season. Whether it is dirt, debris, e

More Information

  • 1. ENGINEERING SUPPORT

    FIJ has at its disposal a range of state-of the art laboratory equipment and test rigs which are used for bearing analysis and testing…

  • 2. GUARANTEED TOP QUALITY

    Production is implemented on modern machinery subject to a corresponding quality control, Our proven customer satisfaction is for us the true certificate…

  • 3. WE KEEP THINGS MOVING

    Whatever requirements your production process may pose, we have the products you need. We have the versatility, speed and service to fill your orders…

EE285160-90047 TAPERED ROLLER BEARING ; DOUBLE ROW NON RET

EE285160-90047 TAPERED ROLLER BEARING ; DOUBLE ROW NON RET

EE285160-90047 TAPERED ROLLER BEARING ; DOUBLE ROW NON RET Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 22.625 Bore – Millimeter: 406.4 Other Features: 2 Single Cone | 1 Double Cup | Large and Small Ribs | Close Guided Roller Global Part Number GPN: 654640 Assembly Components: EE285160 (2) | 285228D (1) | […]

Read more
HM259049-90064 TAPERED ROLLER BEARING ; DOUBLE ROW

HM259049-90064 TAPERED ROLLER BEARING ; DOUBLE ROW

HM259049-90064 TAPERED ROLLER BEARING ; DOUBLE ROW Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 17.625 Bore – Millimeter: 317.5 Other Features: 2 Single Cone | 1 Double Cup | Heavy Medium Duty | Outer Race with Oil Holes and Groove Global Part Number GPN: 657829 Assembly Components: HM259049 (2) | HM259010CD (1) […]

Read more
HM259049-90063 TAPERED ROLLER BEARING ; DOUBLE ROW

HM259049-90063 TAPERED ROLLER BEARING ; DOUBLE ROW

HM259049-90063 TAPERED ROLLER BEARING ; DOUBLE ROW Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 17.625 Bore – Millimeter: 317.5 Other Features: 2 Single Cone | 1 Double Cup | Heavy Medium Duty | Outer Race with Oil Holes and Groove Global Part Number GPN: 657917 Assembly Components: HM259049 (2) | HM259010CD (1) […]

Read more
EE192150-902A6 TAPERED ROLLER BEARING ; DOUBLE ROW

EE192150-902A6 TAPERED ROLLER BEARING ; DOUBLE ROW

EE192150-902A6 TAPERED ROLLER BEARING ; DOUBLE ROW Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 20 Bore – Millimeter: 381 Bore – Inch: 15 Other Features: 2 Single Cone | 1 Double Cup | 1 Cone Spacer Assembly Components: EE192150 (2) | 192201CD (1) | X1S192150 (1) Basic Number: EE192150 Precision Class: Standard […]

Read more

565-99401 TAPERED ROLLER BEARING ; MULTI-BEARING KIT 4-8 OD

565-99401 TAPERED ROLLER BEARING ; MULTI-BEARING KIT 4-8 OD Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 5 Bore – Millimeter: 63.5 Bore – Inch: 2.5 Other Features: 1 Single Cone | 1 Single Cup | Stamped Steel Cage Material Assembly Components: 565 (1) | 563 (1) Basic Number: 565 Precision Class: Standard […]

Read more

HH221449NW-90063 TAPERED ROLLER BEARING ; DOUBLE ROW

HH221449NW-90063 TAPERED ROLLER BEARING ; DOUBLE ROW Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 10.25 Bore – Millimeter: 101.6 Other Features: 2 Single Cone | 1 Double Cup | Heavier Duty | Non-Adjustable Bearing | With Slotted Front Face Global Part Number GPN: 655181 Assembly Components: HH221449NW (2) | K326068 (1) | […]

Read more

SET418-900SA TPD RLR MULTI-BRNG KIT ; 4-8 OD

SET418-900SA TPD RLR MULTI-BRNG KIT ; 4-8 OD Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 5.375 Bore – Millimeter: 61.925 Bore – Inch: 2.438 Other Features: 1 Single Cone | 1 Single Cup Assembly Components: H715334 (1) | H715311 (1) Basic Number: SET418 Precision Class: Standard Outside Diameter – Millimeter: 136.525

Read more

SET102-2 TAPERED ROLLER BEARING ; EACH=SET

SET102-2 TAPERED ROLLER BEARING ; EACH=SET Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 3.437 Bore – Millimeter: 41.275 Bore – Inch: 1.625 Other Features: 1 Single Cone | 1 Single Cup Assembly Components: 3525 (1) | 3585 (1) Basic Number: SET102 Precision Class: Standard Outside Diameter – Millimeter: 87.3

Read more

353118 TAPERED ROLLER BRG

353118 TAPERED ROLLER BRG Component: Assembly Inch – Metric: Metric Outside Diameter – Inch: 2.913 Bore – Millimeter: 45 Bore – Inch: 1.772 Other Features: 1 Single Cone | 1 Single Cup | Pressed Steel Cage Material Assembly Components: X353118 (1) | Y353118 (1) Basic Number: 353118 Precision Class: Standard Outside Diameter – Millimeter: 74

Read more
