Thin Section Ball Bearings

FIJ BEARINGS > Products > Ball Bearings > Thin Section Ball Bearings

There are basically three types: deep groove radial contact, four point contact, and angular contact.

Our Thin Section Bearing Construction

Design is base on industry standard “KA, JA, KC, and “JU” type Thin Section Bearing products.

Series Ball Dia.
KA 3/16″
JA 1/8″
KC 3/16″
JU 3/16″

These are commonly found in applications such as:

  • Medical Equipment
  • Airborne Optical Turrets
  • Robotic Mechanisms
  • Antenna or Satelite Pedestals

VIEW CATALOG

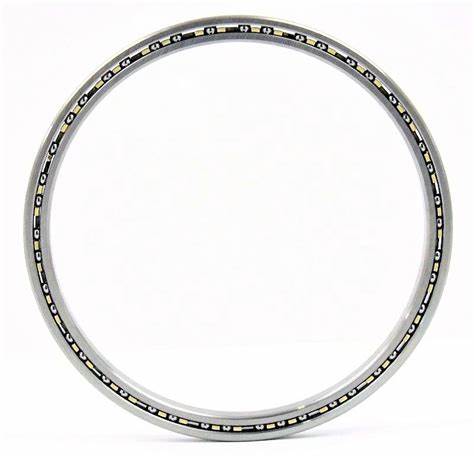

Thin Section Bearings

Our thin section bearings are available in a wide range.
The FIJ Thin Section Bearing produce contains seven series of open types and five series of sealed types, with bore diameter ranging from 1 inch to 40 inch and cross section ranging from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch.
Their design saves weight, creates space, increases design flexibility and provides excellent running accuracy.The bearings meet the most demanding specifications and are often used in high tech applications such as aerospace, medical systems, robotics, astronomy instrumentation and machine tools.
