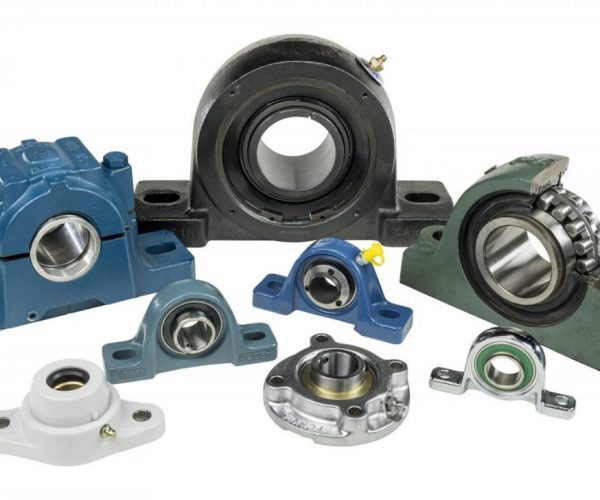

Bearing Units

Type of housing

Plummer block bearing type P / SSP / PPL / PP: Ready for installation. With a long foot for a robust radial attachment with two screws. Ideal for drawn shafts with radial load-ratings.
Plummer block bearing type PA / PW: Ready for installation. Short foot for low profile applications. In the housing base integrated mounting holes allow a direct, space-saving screw with the adjacent construction from below. Ideal for drawn shafts with radial loads.
4 hole flanged housing unit type F / FPL / SSF: Easy installation. Ideal for radial load-ratings. Square design.
4 hole flanged housing unit type FC / PF: Easy installation. Ideal for radial load-ratings. Round design.
3 hole flanged housing unit type PF: Easy installation. Ideal for radial load-ratings. Round design.
3 hole flanged housing unit type PFT: Easy installation. Ideal for radial load-ratings. Triangular design.
2 hole flanged housing unit type FL / SSFL / FLPL / PFL: For radial load-ratings. Optimally suitable if the space at the operation site is limited.
Radial insert ball bearing housing unit type T: For radial load-ratings. Displaceable. With locating hole for tension bolt.

Bearing Units

Bearing units are two kind of: Ball bearing units and Roller bearing units.
Ball bearing units consist of an insert bearing mounted in a housing. An insert bearing is a deep groove ball bearing with a sphered (convex) outside surface and an extended inner ring that includes a mechanism to lock the unit onto the shaft. The housings have a correspondingly sphered but concave bore.
Roller bearing units (mounted bearing units) are robust, ready-to-mount bearing units that are assembled, lubricated and sealed at the factory for maximum service life.

Material description of housing units

Plastic housings with bearing inserts made of stainless steel: are extremely light, hygienic, economical, corrosion-resistant, damping, lubricated with grease for the food industry and are admissible for a temperature range from -20°C up to +90°C.
Stainless housings with bearing inserts made of stainless steel: are hygienic, corrosion-resistant, lubricated with grease for the food industry, have higher load-ratings and are admissible for a temperature range from -20°C up to +120°C.
Cast iron housings with bearing inserts made of rolling bearing steel: are extremely economical, withstand extremely high loads and are admissible for a temperature range from -10°C up to +120°C.
Miniature housings made of stainless steel or zinc die cast with bearing inserts made of stainless steel or rolling bearing steel: are temperature-resistant from -20°C up to +120°C.
