Radial insert ball bearings

FIJ BEARINGS > Products > Ball Bearings > Radial insert ball bearings

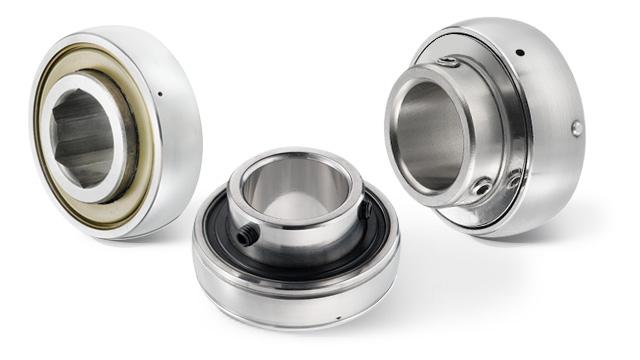

Versions of radial insert ball bearings

Extended inner ring with grub screws (UC 2, UC 3, SB 2, SSUC 2)
Fixing of the inner ring onto the shaft by grub screws. Suitable for both directions of rotation in case of moderate loads.
Eccentric collar (SA 2, UEL 2)
Fixing by eccentric collar and grub screws onto the shaft. Also suitable for higher speeds at constant direction of rotation.
Conical bore (UK 2, UK 3)
Fixing through adapter sleeves onto the shaft makes possible high speeds, changes of direction of rotation and quiet running.
Cylindrical bore (CS 2)
Fixing by shaft fitting allows medium to high speeds. Space-saving installation. For higher loads.

VIEW CATALOG

Radial insert ball bearings — for flexible mounting options on shafts and in housings.

Features of this series

Main dimensions according to DIN 626-1. For high radial and low axial loads. Fixing of the inner ring onto a shaft possible. Good compensation of misalignment in case of the use in corresponding housings.

Insert bearings are based on sealed deep groove ball bearings in the 62 and 63 series, but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.

Material description of radial insert ball bearings

Radial insert ball bearings made of rolling bearing steel
are economical, withstand extremely high load-ratings and are suitable for temperatures from circa -10°C up to +120°C, in case of rubber seals up to circa +100°C in the long run. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.
Radial insert ball bearings made of stainless steel
are hygienic, corrosion-resistant, offer high load-ratings, magnetic and are admissible for a temperature range from circa -20°C up to +125°C.

RESOURCE CENTER

Bearing Data

DATA TABLE

UK318 Radial Insert Ball Bearings

Radial Insert Ball Bearings 1665820713

Bearings Data Inner diameter Ø (mm):80 Outer diameter Ø (mm):190 Bore Ø (mm):90 Width (mm):48 Bore Dia Tolerance-Ø (mm):0,03/0 Outer Dia Tolerance-Ø (...

Continue →

UK218 Radial Insert Ball Bearings

Radial Insert Ball Bearings 1665820711

Bearings Data Inner diameter Ø (mm):80 Outer diameter Ø (mm):160 Bore Ø (mm):90 Width (mm):37 Bore Dia Tolerance-Ø (mm):0,03/0 Outer Dia Tolerance-Ø (...

Continue →

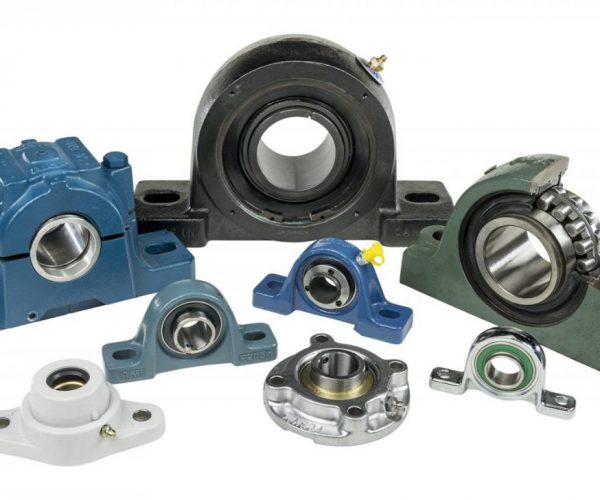

UC322 Radial Insert Ball Bearings

Radial Insert Ball Bearings 1665820707

Bearings Data Inner diameter Ø (mm):90 Outer diameter Ø (mm):190 Width (mm):48 Bore Dia Tolerance-Ø (mm):0,028/0 Outer Dia Tolerance-Ø (mm):0/-0,03 Wi...

Continue →

UC318 Radial Insert Ball Bearings

Radial Insert Ball Bearings 1665820704

Bearings Data Inner diameter Ø (mm):90110 Outer diameter Ø (mm):190240 Width (mm):4860 Bore Dia Tolerance-Ø (mm):0,028/0 Outer Dia Tolerance-Ø (mm):0/...

Continue →
