High-precision Cylindrical Roller Bearings

Material description of high precision cylindrical roller bearing

Super precision cylindrical roller bearing made of rolling bearing steel: Withstand very high radial load-ratings and are suitable for temperatures from circa -20°C up to circa +120°C. The steel is wear-resistant, shock-resistant, conductive and magnetic.

Features of this design

Super precision cylindrical roller bearing: Main dimensions according to DIN 5412-4. The double row cylindrical roller bearings are suitable for supporting very high radial loads and have the structure of a non-locating bearing with outer ring without ribs. They have restricted tolerances for radially rigid super precision storage. The radial internal clearance can be optimally adjusted with their tapered bore (1:12). They are separable and can thus be mounted or demounted more easily.

High-precision cylindrical roller bearings — For the highest demands

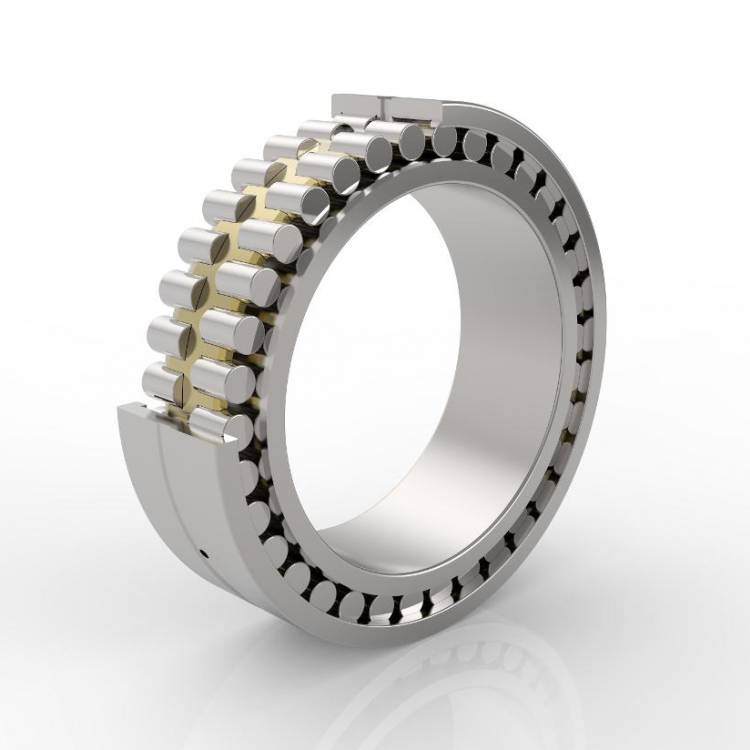

Cylindrical roller bearings of this design are double-row precision bearings for machine tools. They allow radially rigid, high-precision bearing arrangements and are principally used to provide radial support for main spindles.

The bearings comprise solid outer rings without ribs, solid inner rings with three ribs and cylindrical roller and cage assemblies with solid brass cages. For optimum setting of the radial internal clearance, the inner ring has a tapered bore with bore taper 1:12. The cylindrical roller bearings are separable and are therefore easier to fit and dismantle. Both bearing rings can be given a tight fit by this process.

RESOURCE CENTER

Bearing Data

Applications

Medical Instruments

From ultra-precise surgical instruments to high speed dental drill turbines, FIJ miniature bearings deliver the highest

High Precision Motors

High precision motors are used throughout industry to provide smooth and quiet rotation. From robotic exoskeletons to in

Vacuum Pumps

Operating in a high or ultra-vacuum environment presents a number of challenges for bearings, which are essential in ach

Machine Tool Spindles

In industry, it’s essential that machine accuracy is achieved and maintained to the highest degree. High speeds and load

Robotics Industry

The field of robotics is becoming an increasingly sophisticated and rapidly developing area of innovation. From artifici

Food & Beverage Industry

Specifying a ball bearing for use in food and beverage production and packaging raises a unique set of considerations

Flow Meters

It is essential that the flow of gases and liquids is accurately measured by turbine flow meters, where conditions ar

Automation & Industry

Since the introduction of the Ford production line over 100 years ago, the manufacturing industry has embraced the co

Agriculture Industry

Uptime is critical as unplanned downtime that can ruin a planting or harvesting season. Whether it is dirt, debris, e

More Information

1. ENGINEERING SUPPORT

FIJ has at its disposal a range of state-of the art laboratory equipment and test rigs which are used for bearing analysis and testing…
2. GUARANTEED TOP QUALITY

Production is implemented on modern machinery subject to a corresponding quality control, Our proven customer satisfaction is for us the true certificate…
3. WE KEEP THINGS MOVING

Whatever requirements your production process may pose, we have the products you need. We have the versatility, speed and service to fill your orders…

EE285160-90047 TAPERED ROLLER BEARING ; DOUBLE ROW NON RET

EE285160-90047 TAPERED ROLLER BEARING ; DOUBLE ROW NON RET Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 22.625 Bore – Millimeter: 406.4 Other Features: 2 Single Cone | 1 Double Cup | Large and Small Ribs | Close Guided Roller Global Part Number GPN: 654640 Assembly Components: EE285160 (2) | 285228D (1) | […]

HM259049-90064 TAPERED ROLLER BEARING ; DOUBLE ROW

HM259049-90064 TAPERED ROLLER BEARING ; DOUBLE ROW Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 17.625 Bore – Millimeter: 317.5 Other Features: 2 Single Cone | 1 Double Cup | Heavy Medium Duty | Outer Race with Oil Holes and Groove Global Part Number GPN: 657829 Assembly Components: HM259049 (2) | HM259010CD (1) […]

HM259049-90063 TAPERED ROLLER BEARING ; DOUBLE ROW

HM259049-90063 TAPERED ROLLER BEARING ; DOUBLE ROW Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 17.625 Bore – Millimeter: 317.5 Other Features: 2 Single Cone | 1 Double Cup | Heavy Medium Duty | Outer Race with Oil Holes and Groove Global Part Number GPN: 657917 Assembly Components: HM259049 (2) | HM259010CD (1) […]

EE192150-902A6 TAPERED ROLLER BEARING ; DOUBLE ROW

EE192150-902A6 TAPERED ROLLER BEARING ; DOUBLE ROW Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 20 Bore – Millimeter: 381 Bore – Inch: 15 Other Features: 2 Single Cone | 1 Double Cup | 1 Cone Spacer Assembly Components: EE192150 (2) | 192201CD (1) | X1S192150 (1) Basic Number: EE192150 Precision Class: Standard […]

565-99401 TAPERED ROLLER BEARING ; MULTI-BEARING KIT 4-8 OD

565-99401 TAPERED ROLLER BEARING ; MULTI-BEARING KIT 4-8 OD Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 5 Bore – Millimeter: 63.5 Bore – Inch: 2.5 Other Features: 1 Single Cone | 1 Single Cup | Stamped Steel Cage Material Assembly Components: 565 (1) | 563 (1) Basic Number: 565 Precision Class: Standard […]

HH221449NW-90063 TAPERED ROLLER BEARING ; DOUBLE ROW

HH221449NW-90063 TAPERED ROLLER BEARING ; DOUBLE ROW Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 10.25 Bore – Millimeter: 101.6 Other Features: 2 Single Cone | 1 Double Cup | Heavier Duty | Non-Adjustable Bearing | With Slotted Front Face Global Part Number GPN: 655181 Assembly Components: HH221449NW (2) | K326068 (1) | […]

SET418-900SA TPD RLR MULTI-BRNG KIT ; 4-8 OD

SET418-900SA TPD RLR MULTI-BRNG KIT ; 4-8 OD Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 5.375 Bore – Millimeter: 61.925 Bore – Inch: 2.438 Other Features: 1 Single Cone | 1 Single Cup Assembly Components: H715334 (1) | H715311 (1) Basic Number: SET418 Precision Class: Standard Outside Diameter – Millimeter: 136.525

SET102-2 TAPERED ROLLER BEARING ; EACH=SET

SET102-2 TAPERED ROLLER BEARING ; EACH=SET Component: Assembly Inch – Metric: Inch Outside Diameter – Inch: 3.437 Bore – Millimeter: 41.275 Bore – Inch: 1.625 Other Features: 1 Single Cone | 1 Single Cup Assembly Components: 3525 (1) | 3585 (1) Basic Number: SET102 Precision Class: Standard Outside Diameter – Millimeter: 87.3

353118 TAPERED ROLLER BRG

353118 TAPERED ROLLER BRG Component: Assembly Inch – Metric: Metric Outside Diameter – Inch: 2.913 Bore – Millimeter: 45 Bore – Inch: 1.772 Other Features: 1 Single Cone | 1 Single Cup | Pressed Steel Cage Material Assembly Components: X353118 (1) | Y353118 (1) Basic Number: 353118 Precision Class: Standard Outside Diameter – Millimeter: 74
