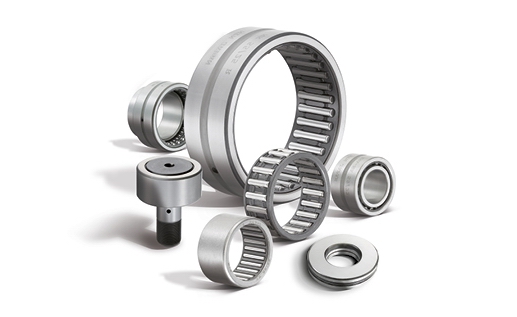

Needle Roller Bearings

FIJ BEARINGS > Products > Roller Bearings > Needle Roller Bearings

Features of these series

The compact designs of needle roller bearings, drawn cup needle roller bearings, drawn cup needle roller bearings with closed end and thrust needle roller bearings make possible a space-saving mounting either in the radial or the axial direction and offer nevertheless a relatively high load carrying capacity. Furthermore, radial needle roller bearings have got excellent non-locating bearing properties.

Versions of needle roller bearings

Needle roller bearings with solid rings
Main dimensions according to DIN 617 respectively DIN 617-1. Solid roller bearing rings made of steel allow a comparatively very high radial load carrying capacity. Available with- and without inner ring provided that the hardened and ground shaft is suitable as raceway.
Drawn cup needle roller bearings/ drawn cup needle roller bearings with closed end
Main dimensions according to DIN 618-1. Fine needles in the deep-drawn, hardened steel sheet casing guarantee a low profile height together with a high radial load carrying capacity. Usable if the shaft is suitable for the use as running surface and the bore in the housing is not suitable as running surface for a needle roller and cage assembly.
Needle roller and cage assemblies
Main dimensions according to DIN 5405-1. For the support of high radial loads and a storage being insensitive to shocks. Needle roller and cage assemblies offer the lowest radial section height compared to other needle roller bearings, require however also a hardened and ground raceway.

VIEW CATALOG

Needle roller bearings — Small cylinders for special requirements.

Needle bearings feature a smaller cross-section, higher load-carrying capacity, greater rigidity, and lower inertia forces that facilitate size and weight reductions in machinery. They’re designed to withstand oscillation, perform under severe conditions, and interchange with sliding bearings.

Material description of needle roller bearings

Needle roller bearings / needle roller and cage assemblies made of rolling bearing steel
are economical, withstand extremely high load-ratings and are suitable for temperatures from circa -20°C up to +120°C, in case of plastic cage respectively plastic seals up to +100°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.
Drawn cup needle roller bearings/ drawn cup needle roller bearings with closed end with outer ring made of steel sheet and needles made of rolling bearing steel
can be used in case of temperatures from circa -20°C up to +120°C. Drawn cup needle roller bearings and drawn cup needle roller bearings with closed end with plastic seals can be used in case of temperatures of circa +100°C in the long run. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.

RESOURCE CENTER

Bearing Data

DATA TABLE

BK3026 Needle Roller Bearings

Bearing Data BK Series Needle Roller Bearings Roller Bearings 1660051176

Bearings Data Inner diameter Ø (mm):30 Outer diameter Ø (mm):37 Width (mm):26 Width Tolerance (mm):0/-0,3 Ring Material:Rolling bearing steel Inner Ri...

Continue →

BK3020 Needle Roller Bearings

Bearing Data BK Series Needle Roller Bearings Roller Bearings 1660051175

Bearings Data Inner diameter Ø (mm):30 Outer diameter Ø (mm):37 Width (mm):20 Width Tolerance (mm):0/-0,3 Ring Material:Rolling bearing steel Inner Ri...

Continue →

BK3016 Needle Roller Bearings

Bearing Data BK Series Needle Roller Bearings Roller Bearings 1660051172

Bearings Data Inner diameter Ø (mm):30 Outer diameter Ø (mm):37 Width (mm):16 Width Tolerance (mm):0/-0,3 Ring Material:Rolling bearing steel Inner Ri...

Continue →

BK3012 Needle Roller Bearings

Bearing Data BK Series Needle Roller Bearings Roller Bearings 1660051171

Bearings Data Inner diameter Ø (mm):30 Outer diameter Ø (mm):37 Width (mm):12 Width Tolerance (mm):0/-0,3 Ring Material:Rolling bearing steel Inner Ri...

Continue →
