Spherical Roller Bearings

FIJ BEARINGS > Products > Roller Bearings > Spherical Roller Bearings

Material description of spherical roller bearings

Spherical roller bearings made of rolling bearing steel
are economical, withstand extremely high load-ratings and are suitable for temperatures from circa -20°C up to +120°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.

Features of this design

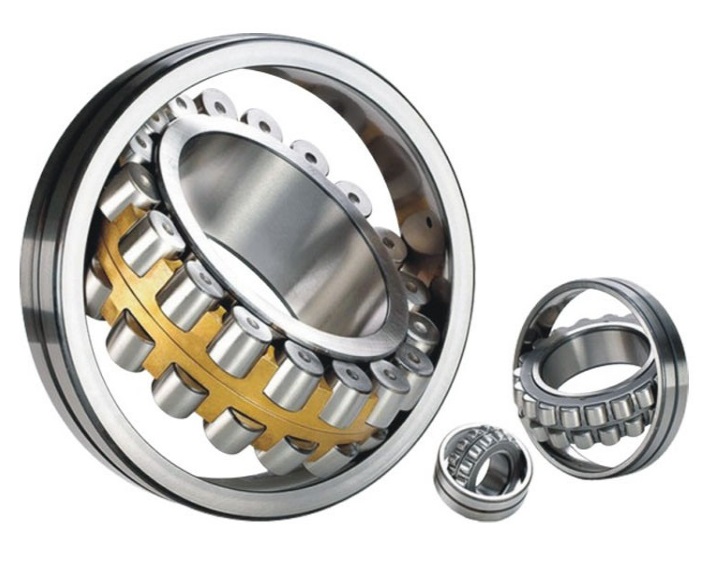

Spherical roller bearing
Main dimensions according to DIN 635-2. Double row. Support extremely high radial and relatively high axial forces in both directions. Ideal for combined loads in both directions. Offer an excellent compensation of misalignment. Available with cylindrical and conical bore (for fixing adapter sleeve).

VIEW CATALOG

Spherical roller bearings — variable shaft guidance and extremely high load capacity.

Spherical roller bearings with high load carrying capacity and ability to accommodate misalignment helps you obtain low maintenance costs and long bearing service life. These bearings have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway. They are self-aligning because the center of curvature of the outer ring raceway surface coincides with the bearing axis. We offer a wide range of robust spherical roller bearings in both open and sealed variants.

Spherical roller bearings are primarily used in such application as rolling mills, paper making machines,power-driven gears, shipping and so on.

RESOURCE CENTER

Bearing Data

DATA TABLE

24140-CC-W33 Spherical Roller Bearings

241 Series Bearing Data Roller Bearings Spherical Roller Bearings 1660048374

Bearings Data Inner diameter Ø (mm):200 Outer diameter Ø (mm):340 Width (mm):140 Bore Dia Tolerance-Ø (mm):0/-0,03 Outer Dia Tolerance-Ø (mm):0/-0,04 ...

Continue →

24140-CC-K-W33 Spherical Roller Bearings

241 Series Bearing Data Roller Bearings Spherical Roller Bearings 1660048370

Bearings Data Inner diameter Ø (mm):200 Outer diameter Ø (mm):340 Width (mm):140 Bore Dia Tolerance-Ø (mm):0/-0,03 Outer Dia Tolerance-Ø (mm):0/-0,04 ...

Continue →

24140-CA-W33 Spherical Roller Bearings

241 Series Bearing Data Roller Bearings Spherical Roller Bearings 1660048366

Bearings Data Inner diameter Ø (mm):200 Outer diameter Ø (mm):340 Width (mm):140 Bore Dia Tolerance-Ø (mm):0/-0,03 Outer Dia Tolerance-Ø (mm):0/-0,04 ...

Continue →

24140-CA-K-W33 Spherical Roller Bearings

241 Series Bearing Data Roller Bearings Spherical Roller Bearings 1660048362

Bearings Data Inner diameter Ø (mm):200 Outer diameter Ø (mm):340 Width (mm):140 Bore Dia Tolerance-Ø (mm):0/-0,03 Outer Dia Tolerance-Ø (mm):0/-0,04 ...

Continue →
