DAAPF38K700S Double Nut Tapered Adapter Four-Bolt Pillow Block Bearings

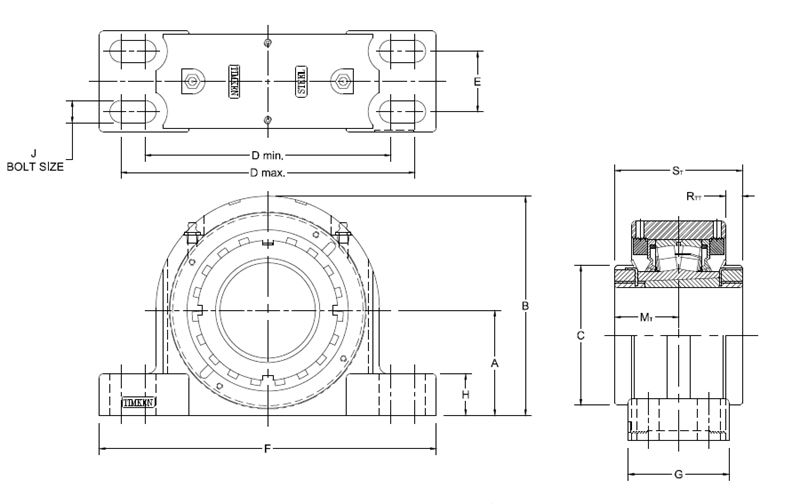

Dimension A	N/A 7.5 in190.5 mm
Dimension B	N/A 15.4 in391.2 mm
Dimension C	N/A 9.51 in241.7 mm
Dimension D Min	N/A 20.88 in530.2 mm
Dimension D Max	N/A 23.63 in600.1 mm
Dimension E	N/A 4.63 in117.5 mm
Dimension F	N/A 26 in660.4 mm
Dimension G	N/A 7.5 in190.5 mm
Dimension H	N/A 3 in76.2 mm
Dimension J (Bolt Size)	N/A 1 in24 mm
Dimension L	N/A 7.88 in200 mm
Dimension MT	N/A 4.13 in104.8 mm
Dimension RTT	N/A 0.45 in11.4 mm
Dimension ST	N/A 8.14 in206.7 mm

Mounted Solid-Block Spherical Roller Bearings
