627 Hybrid Ceramic Bearings (7X22X7)

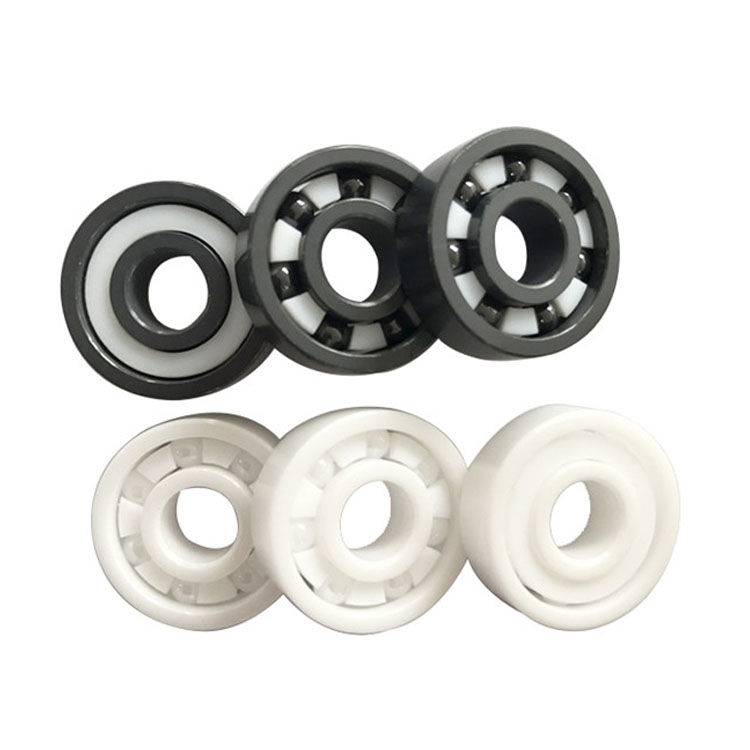

627 Hybrid Ceramic Bearings can be made with chrome 52100 or stainless steel for the inside and outside race along with silicon nitride balls. The retainer can be PTFE peek or full complement. The bearing can be open or sealed. Dry or greased. If you do not see a specific type of bearing on our website please send us a quote request for custom bearings.
Description
627 Hybrid Ceramic Bearings (7X22X7)
| Dimension Type | Metric |
|---|---|
| ID (d) | 7 |
| OD (D) | 22 |
| Width (B1) | 7 |
Calculation data
| Basic dynamic load rating | C | 3.45 | kN | |
| Basic static load rating | C0 | 1.37 | kN | |
| Reference speed | 85000 | r/min | ||
| Limiting speed | 40000 | r/min |
In stock items will typically ship in 3 to 7 working days.
Large quantity discounts available.
Hybrid bearings with special coatings
For specific application requirements, hybrid bearings can be customized:
- ring coating with zinc chromate or thin dense chromium for corrosion protection
- ring coating based on molybdenum for low friction applications
For availability and detailed information, contact FIJ.
