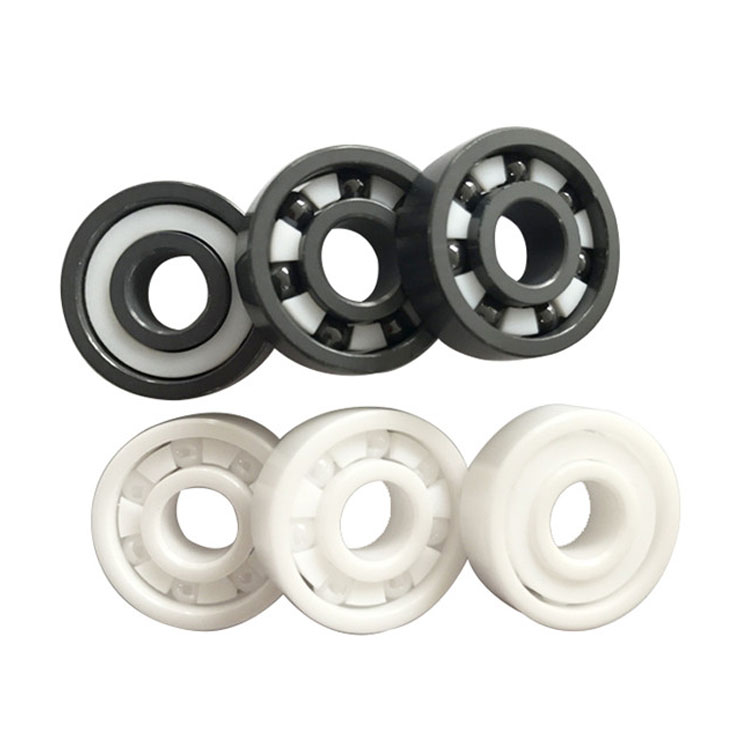

6202 Hybrid Ceramic Bearings (15X35X11)
FIJ’s 6202 (15X35X11) Hybrid Ceramic Bearings can be made with chrome 52100 or stainless steel for the inside and outside race along with silicon nitride balls. The retainer can be PTFE peek or full complement. The bearing can be open or sealed. Dry or greased.
Description
6202 Hybrid Ceramic Bearings (15X35X11)
The hybrid deep groove ball bearing 6202 Hybrid Ceramic Bearings has excellent properties due to the Silicon Nitride ceramic rolling elements. Lighter than comparable deep groove ball bearings with steel balls as rolling elements; ceramic balls have a current-insulating effect; withstands higher speeds and has a high wear resistance.
| Dimension Type | Metric |
|---|---|
| ID (d) | 15 |
| OD (D) | 35 |
| Width (B1) | 11 |
Calculation data
| Basic dynamic load rating | C | 8.06 | kN | |
| Basic static load rating | C0 | 3.75 | kN | |
| Reference speed | 50000 | r/min | ||
| Limiting speed | 22000 | r/min |
In stock items will typically ship in 3 to 7 working days.
Large quantity discounts available.
We Build Your Bearings By Hand
At FIJ we build every single bearing by hand for your specific custom application, we do not sale pre-built, machine made bearings. All the ceramic material for full ceramic and hybrid ceramic bearing are made in our own facility. Please note, our Chrome Steel 52100, Stainless Steel 440C, Cage/Retainer and Enclosure components are made in Japan and Taiwan, to our specs.
