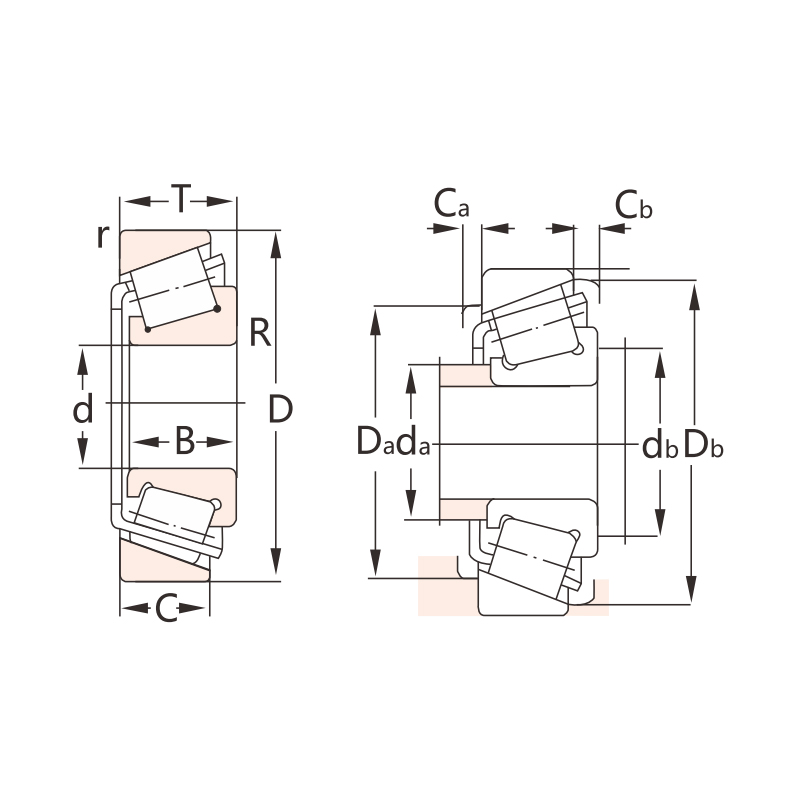

Bearings Data
| Inner diameter Ø (mm): | 28.575 |
| Outer diameter Ø (mm): | 68.262 |
| Bearing Width (mm): | 22.225 |
| Width Outer Ring (mm): | 17.462 |
| Width Inner Ring (mm): | 22.225 |
| Bore Dia Tolerance-Ø (mm): | 0,012/0 |
| Outer Dia Tolerance-Ø (mm): | 0,025/0 |
| Width Tolerance of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seals: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Magnetic: | yes |
| Mass: | 0,4100 kg |
Tapered Roller Bearings 02474 – 02420 28.575×68.262×22.225 mm
